Machining
CNC and manual horizontal boring, vertical turning and milling of castings, fabrications and forgings up to 10 tonnes and 3 metres, to your drawings.
Read more →Subcontract machining · Clay Cross, Derbyshire
Medium to large CNC machining up to 10 tonnes
Castings, fabrications, forgings and assemblies up to 3 metres diameter or cubed, machined to your drawings. Large horizontal boring, vertical turning and milling under one roof, inspected before anything leaves the shop.
Max part weight10t10 t and 5 t overhead cranes
Max part size3mDiameter or cubed
Vertical turningØ2,134mmUp to 1,120 mm high
Boring travelX 3,000mm5-axis Doosan DB-130CX
Services
Machining, project management, assembly and repair
From one shop and one quality system, a large part can go from drawing to finished, assembled unit without changing supplier.
Engineering project management
Turnkey delivery of heavy engineered parts: fabrication, machining, 3D scanning, assembly and inspection, managed by one team from drawing to dispatch.
Read more →Fitting and assembly
Bench fitting and assembly of machined parts, from sub-assemblies to complete units, checked as one before they leave the shop.
Read more →Reverse engineering, repair and refurbishment
Legacy parts reverse engineered, worn parts re-machined or rebuilt, so plant goes back into service without waiting for a new casting.
Read more →Recent work
From the shop floor
Machining processes
Large-part machining, start to finish
Read more about CNC and manual machining →
Process 01

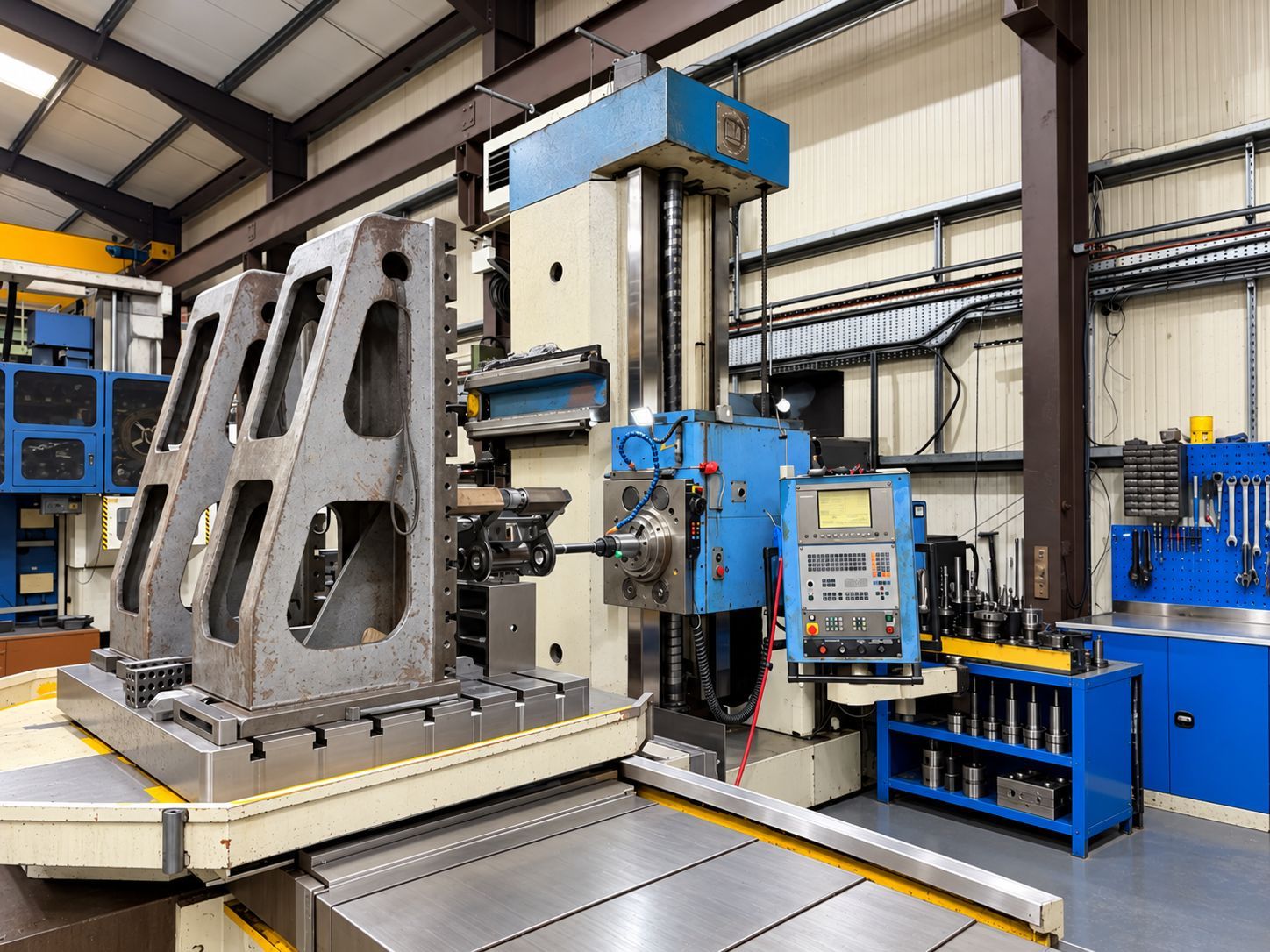

Large CNC horizontal boring and milling
Boring, milling, drilling and facing on large castings and fabrications in a single setting, cutting handling and keeping features true to one another.

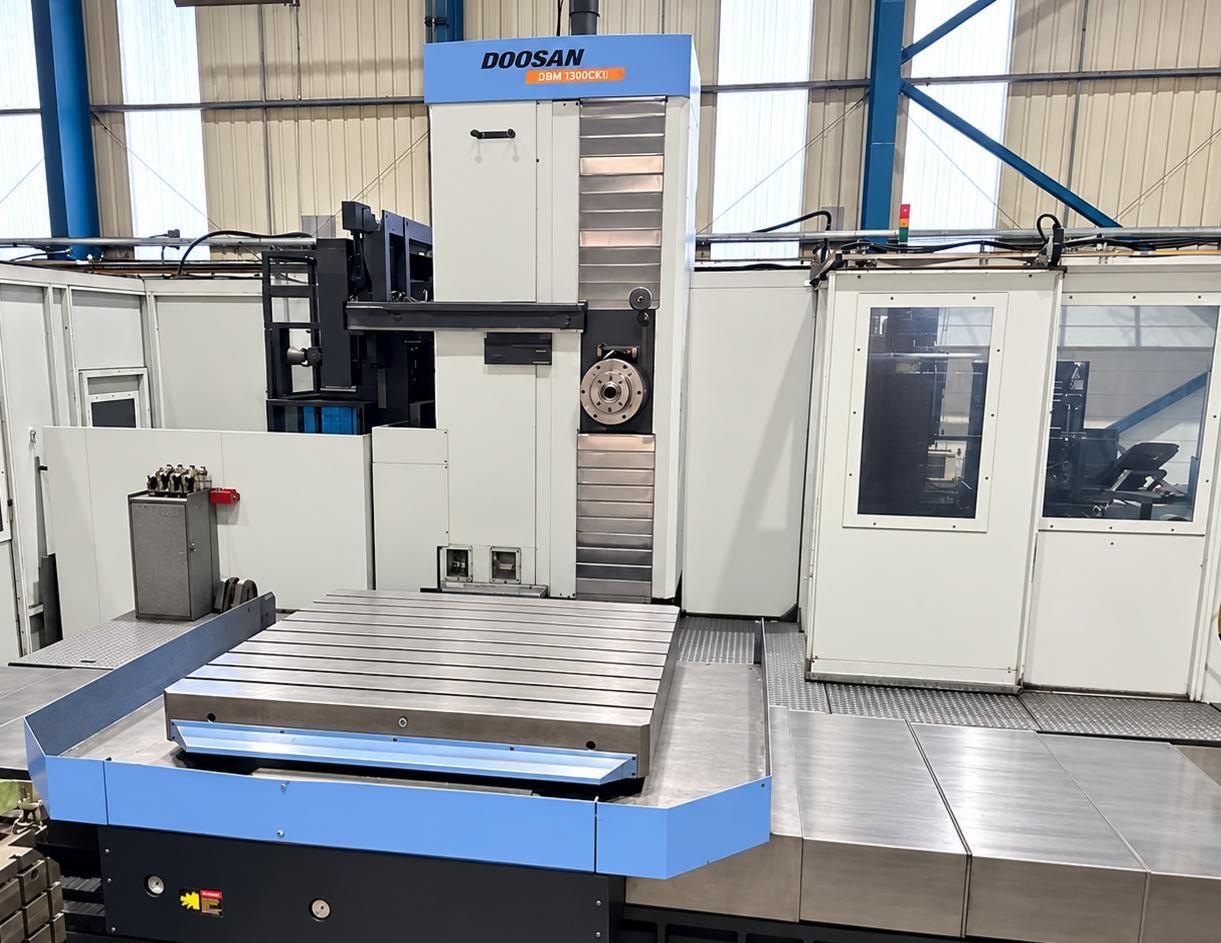

- Doosan DB-130CX, full 5-axis; X 3,000 · Y 2,000 · Z 1,600 mm
- Union BFT130/7; X 2,785 · Y 2,400 · Z 2,345 mm
- Cogsdill facing head; 40-station tool changer
Process 02

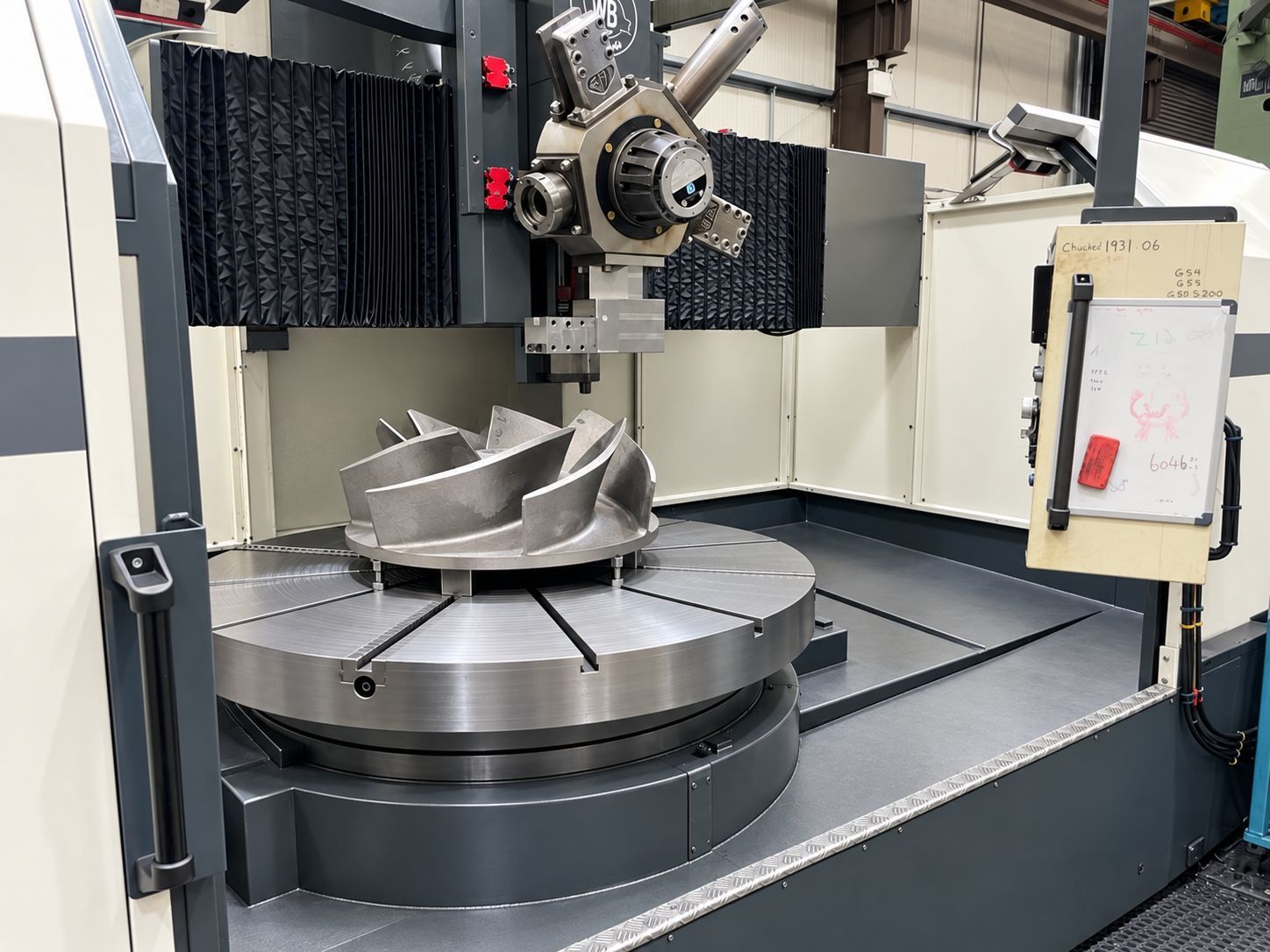

CNC vertical boring and turning
Large diameter rings, flanges, housings and discs turned on vertical borers, where heavy parts sit stable on the table.

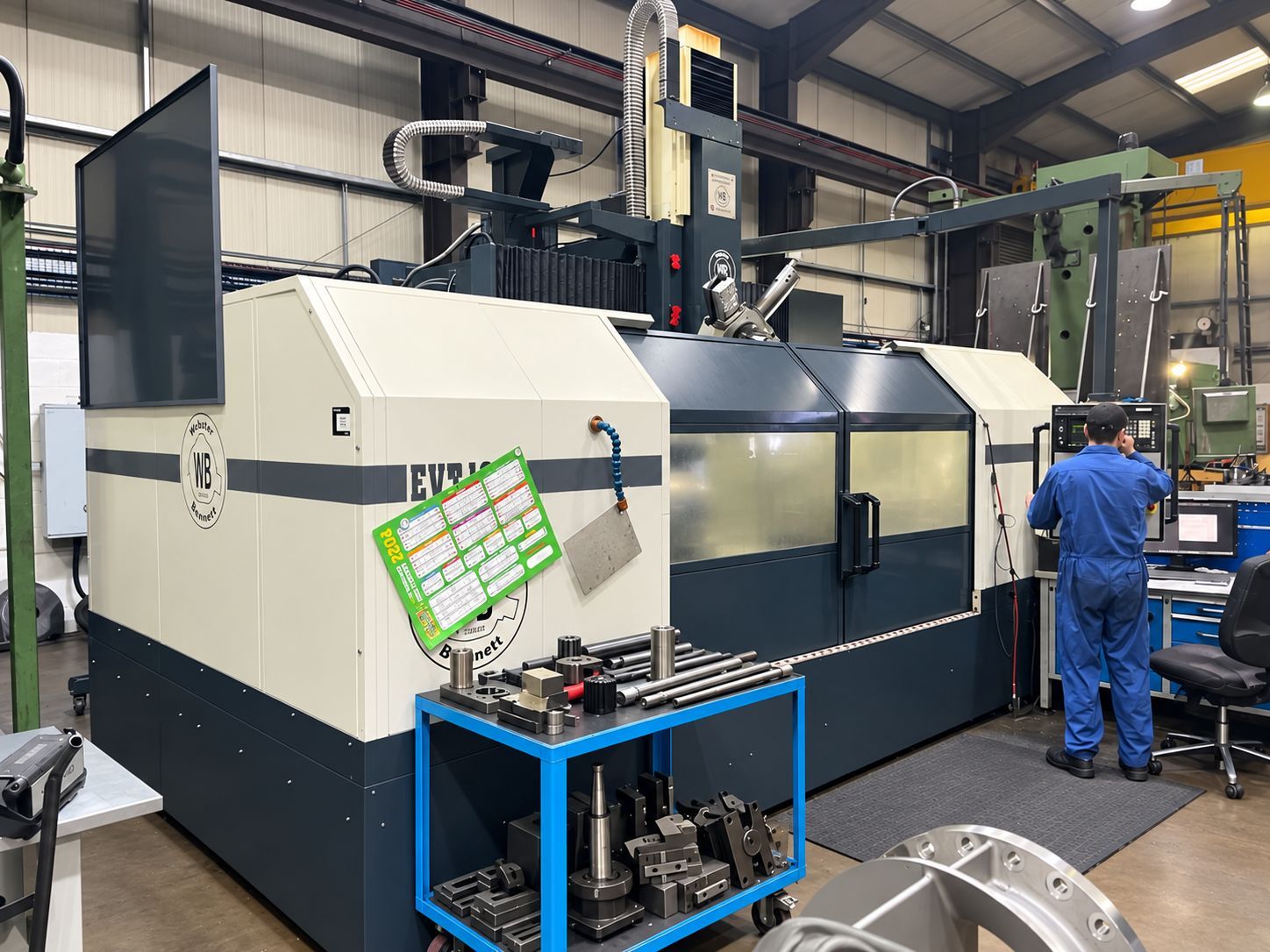

- 6 ft CNC vertical borer; Ø2,134 mm × 1,120 mm high

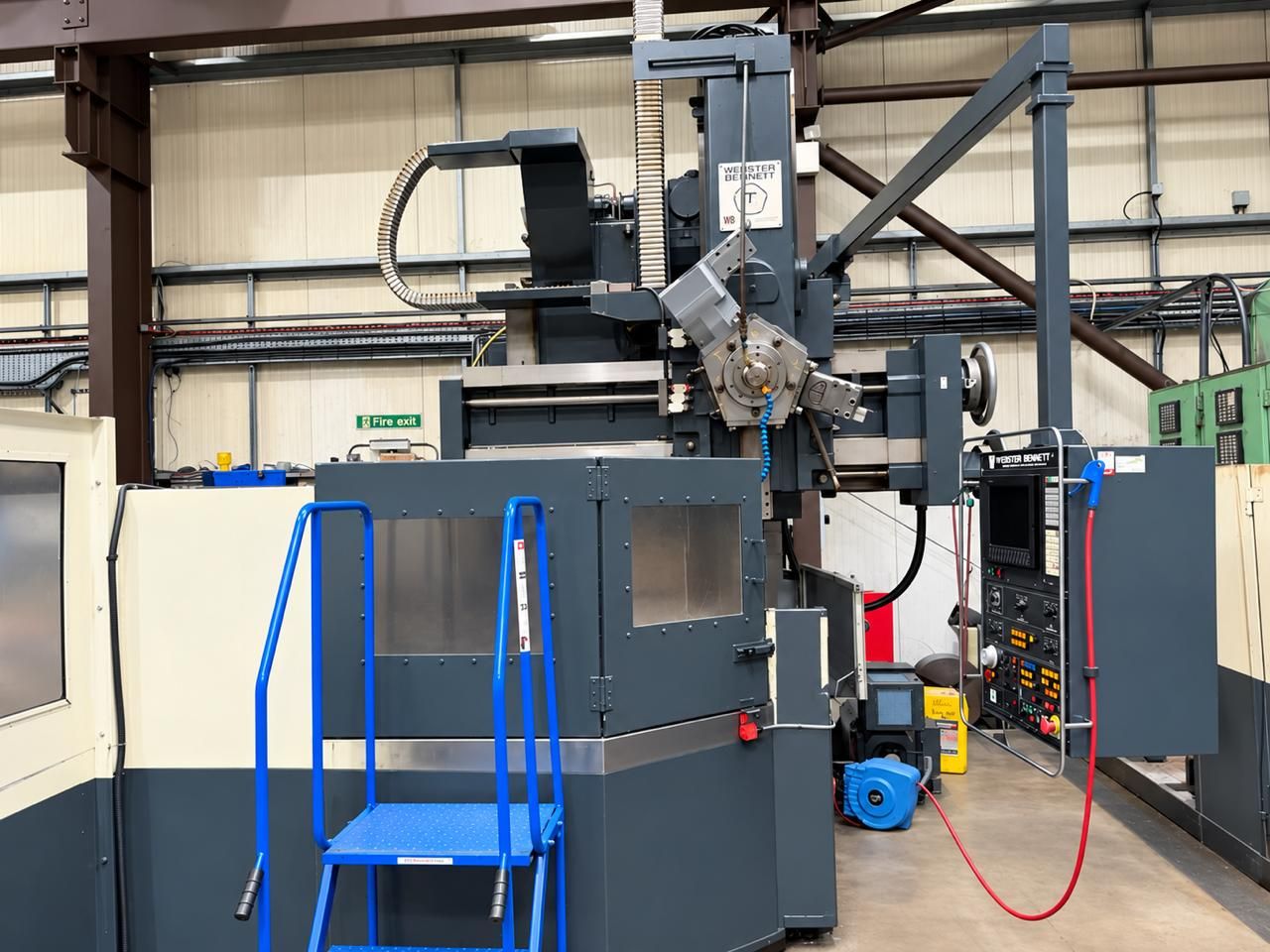

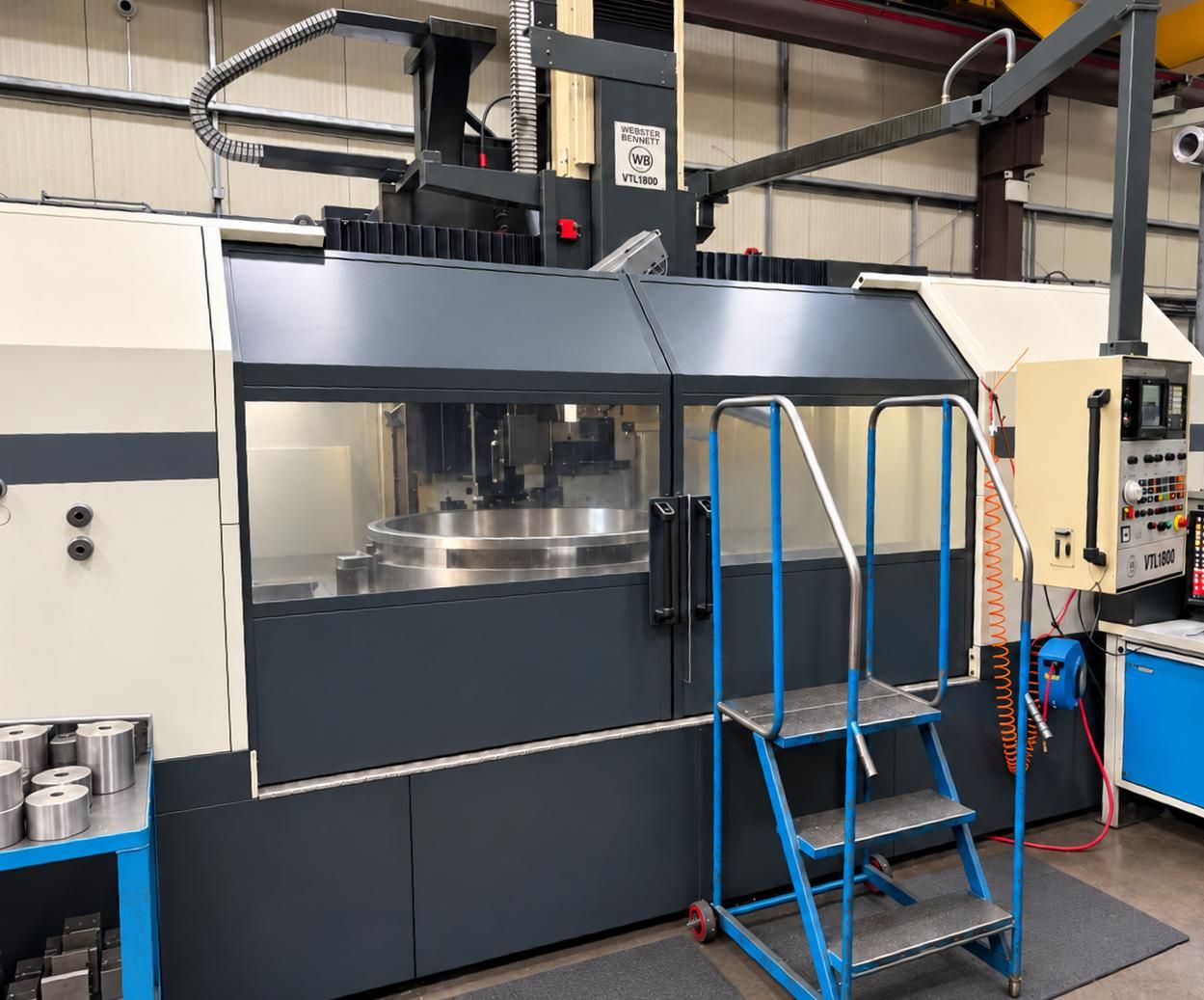

- Three 4 ft CNC vertical lathes (two standard, one S type with extra height); Ø1,829 mm, up to 1,650 mm high
Process 03
Large CNC milling
Vertical machining centres for plates, blocks and medium components that need accurate faces, pockets and drilled patterns.

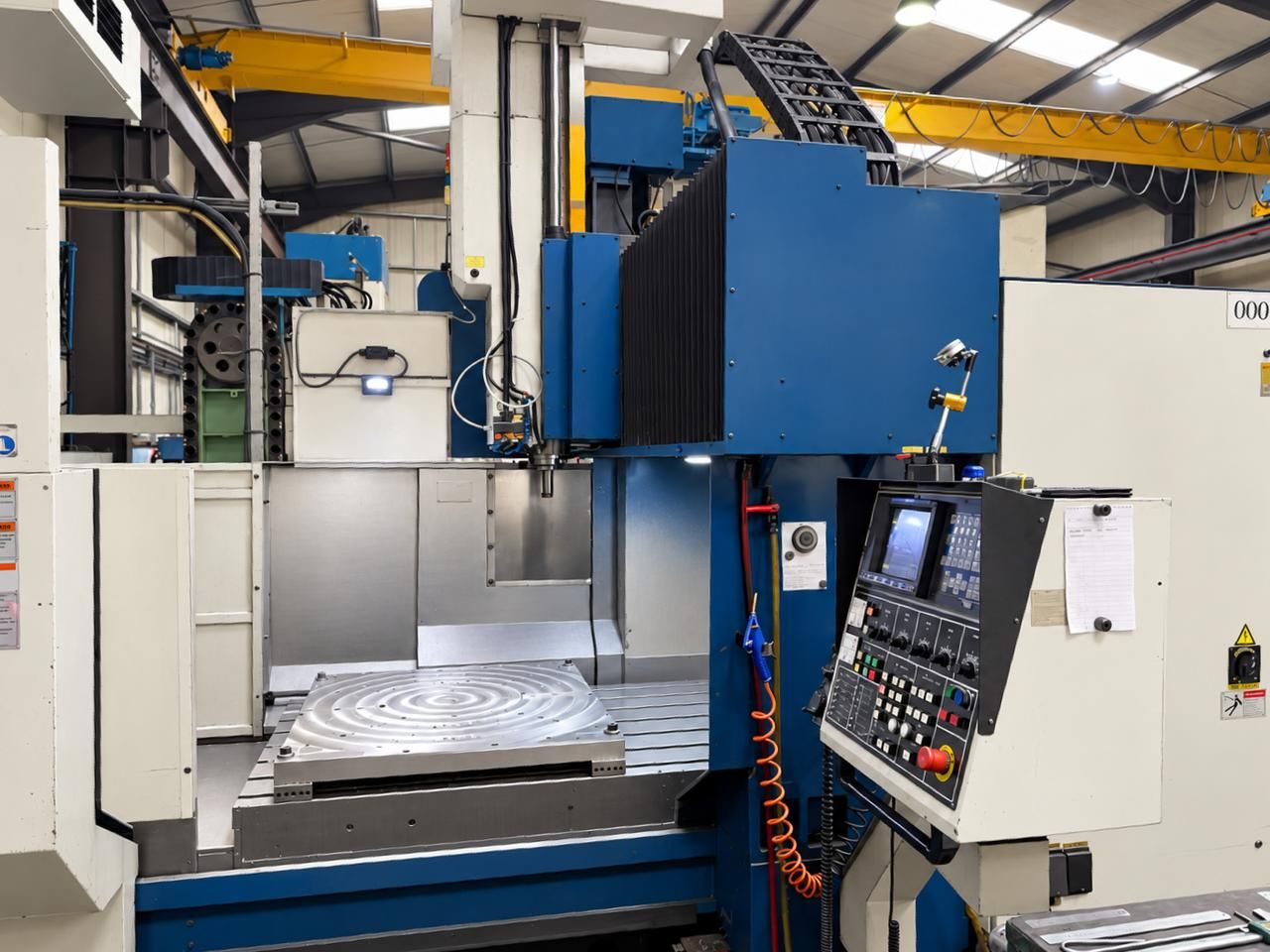

- AWEA double-column VMC; X 2,000 · Y 1,200 · Z 760 mm

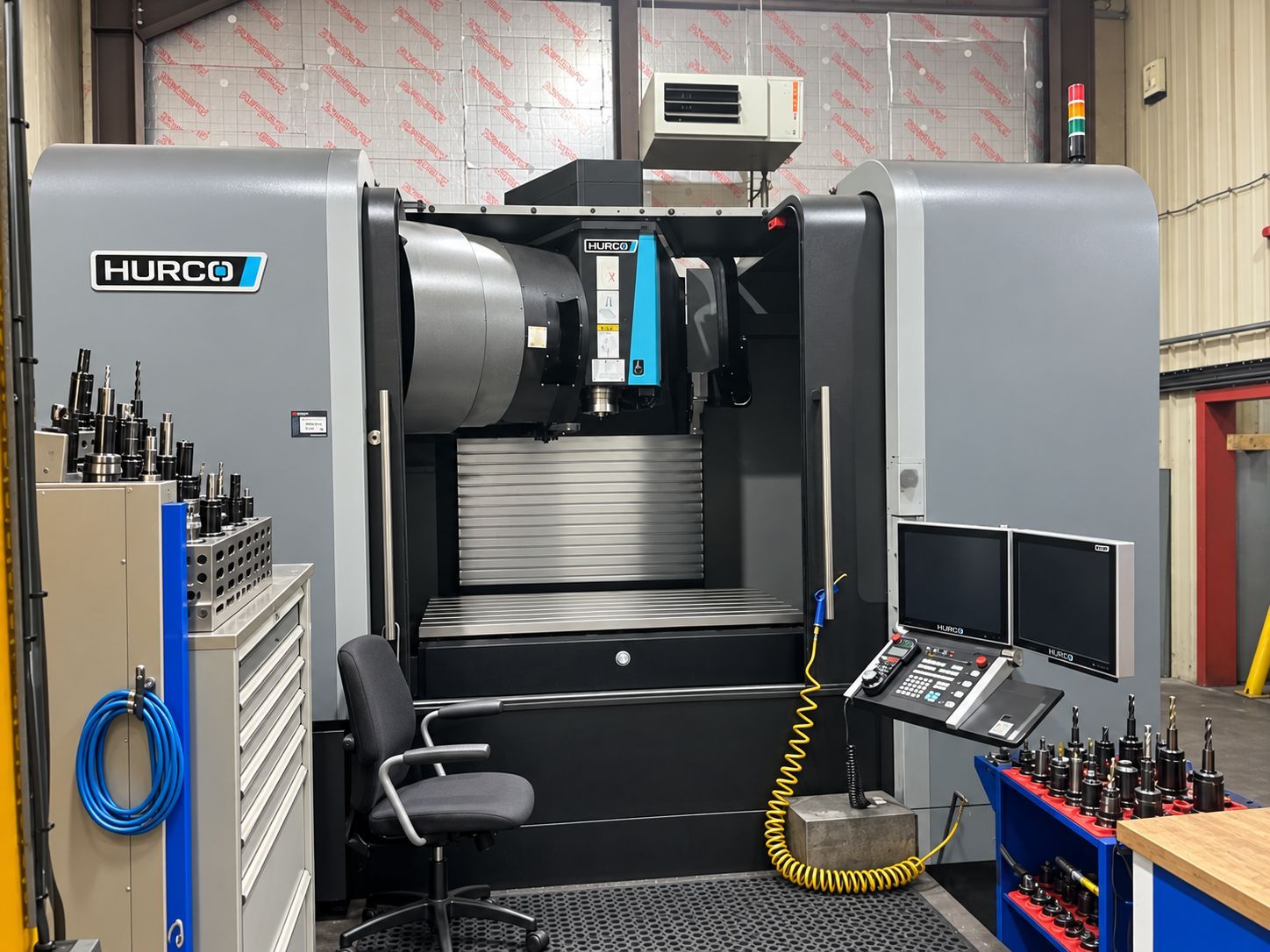

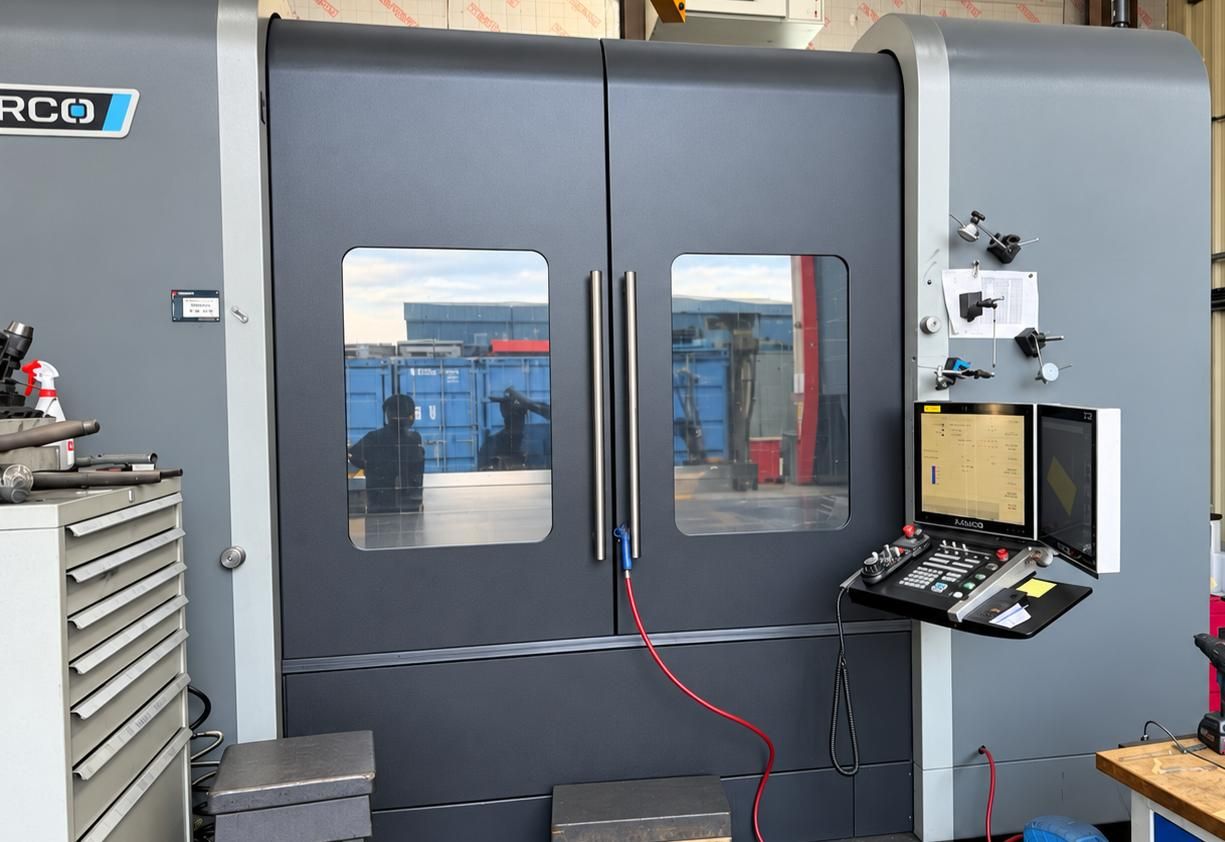

- Hurco VMX64Ti XP; X 1,625 · Y 864 · Z 762 mm
Process 04
Manual machining
Conventional boring for work that suits a skilled manual setup: one-offs, deep bores and awkward parts.

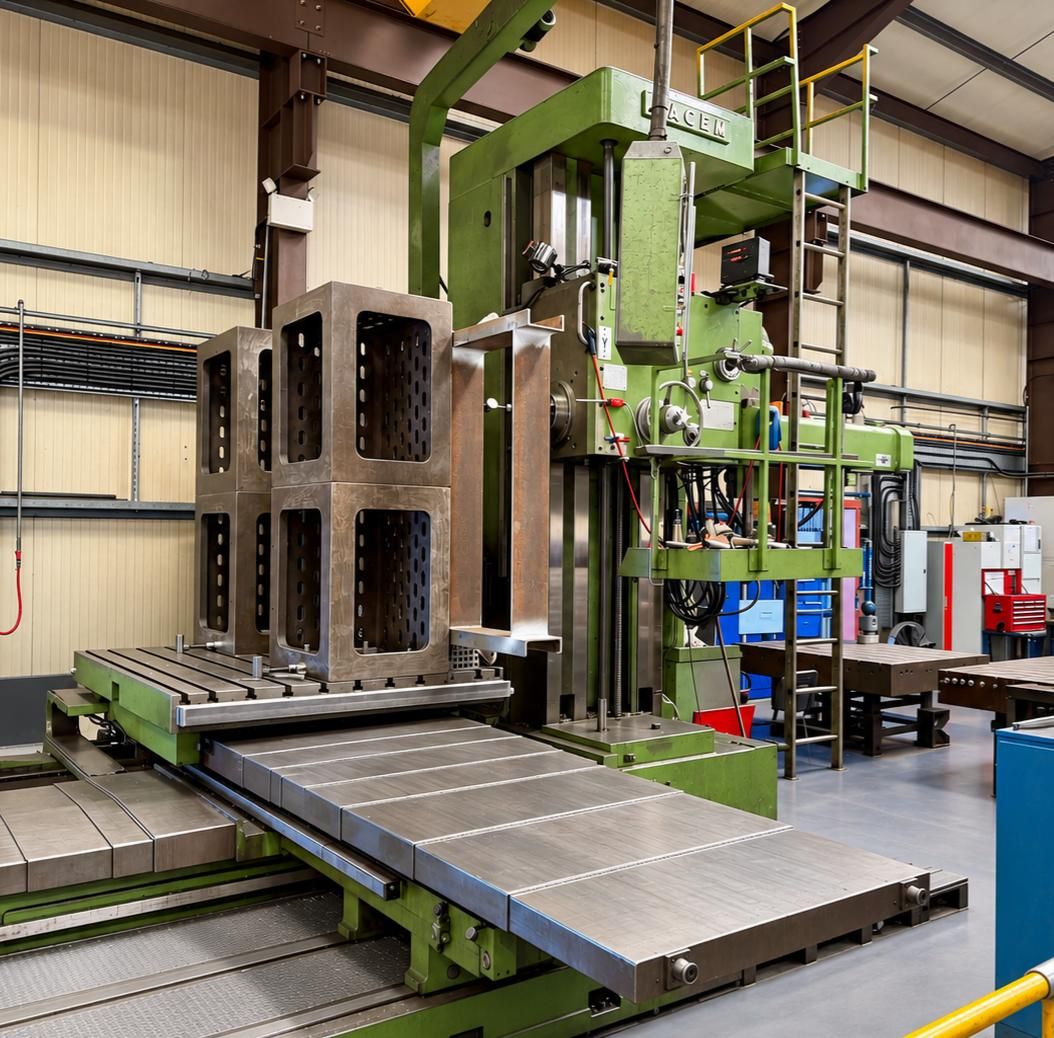

- Sacem 130 MST manual borer; X 3,000 · Y 2,000 · Z 3,000 mm
- Quick set-ups with no programming lead time
Process 05
Inspection
FARO portable arm inspection on and off the machine, with full dimensional reports available.

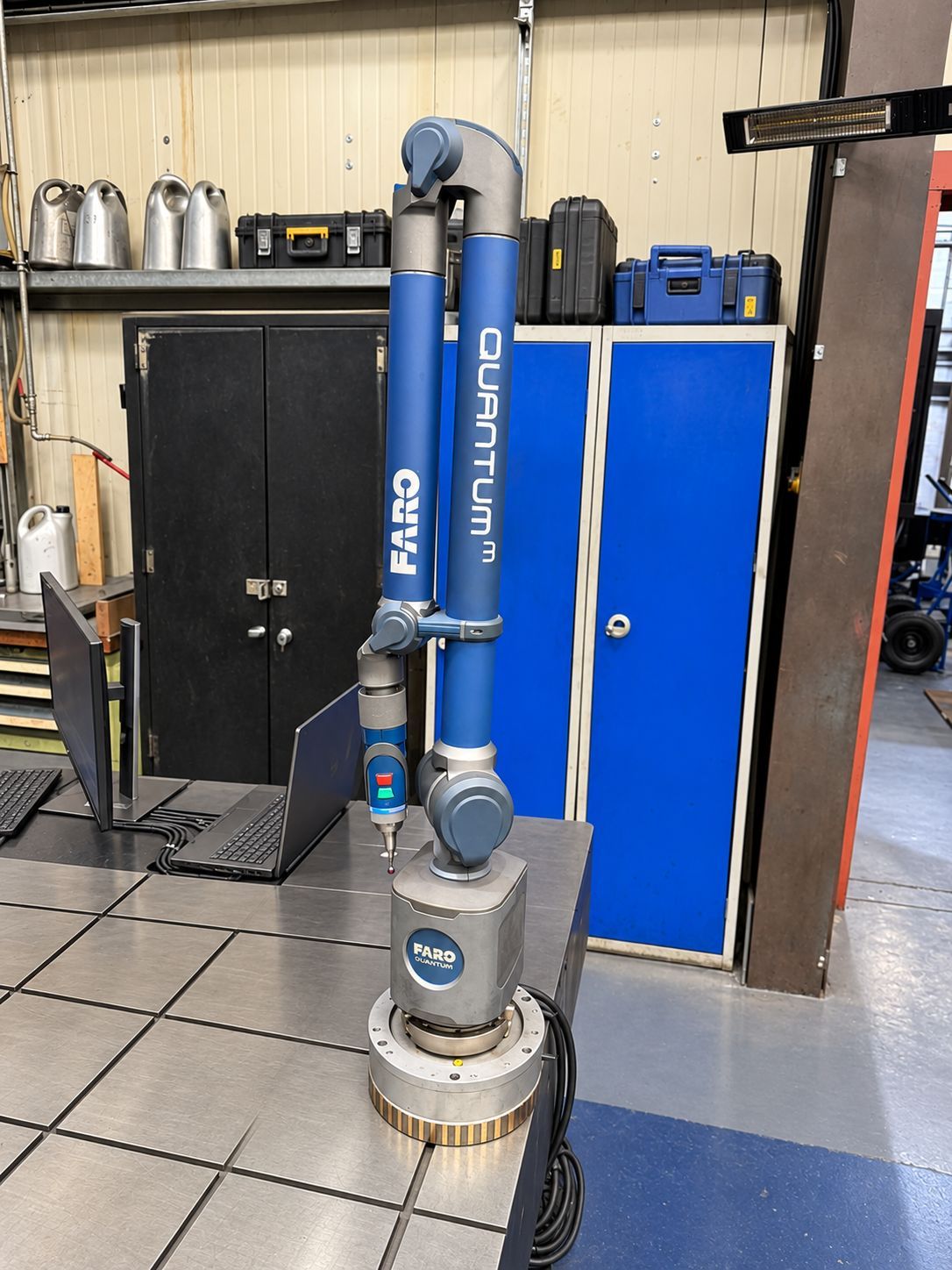

- FARO portable 6-axis measuring arm
- Checks on the machine, mid-job and at final inspection
- Full dimensional reports on request
Your part
Not sure which process?
Send the drawing and we will tell you how we would machine it, on which machine, and what it will cost.
Send requirements →Send technical requirements: sketches, models, drawings, specifications, scope of works.Machine capacity
The machine list
Travels and capacities in millimetres. The capacity page has photos of each machine.
| Process | Machine | Capacity (mm) |
|---|---|---|
| Horizontal boring5-axis CNC | Doosan DB-130CX, Cogsdill facing head, 40-station tool changer | X 3,000 · Y 2,000 · Z 1,600 |
| Horizontal boringLarge CNC | Union BFT130/7 | X 2,785 · Y 2,400 · Z 2,345 |
| Horizontal boringCNC | WMW 105 CNC horizontal borer | Machining envelope on request |
| Horizontal boringManual | Sacem 130 MST | X 3,000 · Y 2,000 · Z 3,000 |
| Vertical turning6 ft CNC | CNC vertical borer | Ø2,134 × 1,120 high |
| Vertical turning4 ft CNC · 3 machines | CNC vertical lathes: two standard, one S type with extra height | Ø1,829 × 1,650 high (S type) |
| Vertical millingDouble column | AWEA VMC | X 2,000 · Y 1,200 · Z 760 |
| Vertical millingMachining centre | Hurco VMX64Ti XP | X 1,625 · Y 864 · Z 762 |
| InspectionPortable arm | Faro Prime 2.4 m, 6-axis | Magnetic mount and tripod |
| LiftingOverhead cranes | 10 t and 5 t | Parts up to 10 tonnes |
Travels and capacities in millimetres. If your part is close to a limit, send the drawing and we will tell you straight away whether it fits.
Lifting capacity
Lifting capacity
Heavy parts move from lorry to machine without waiting for outside lifting.

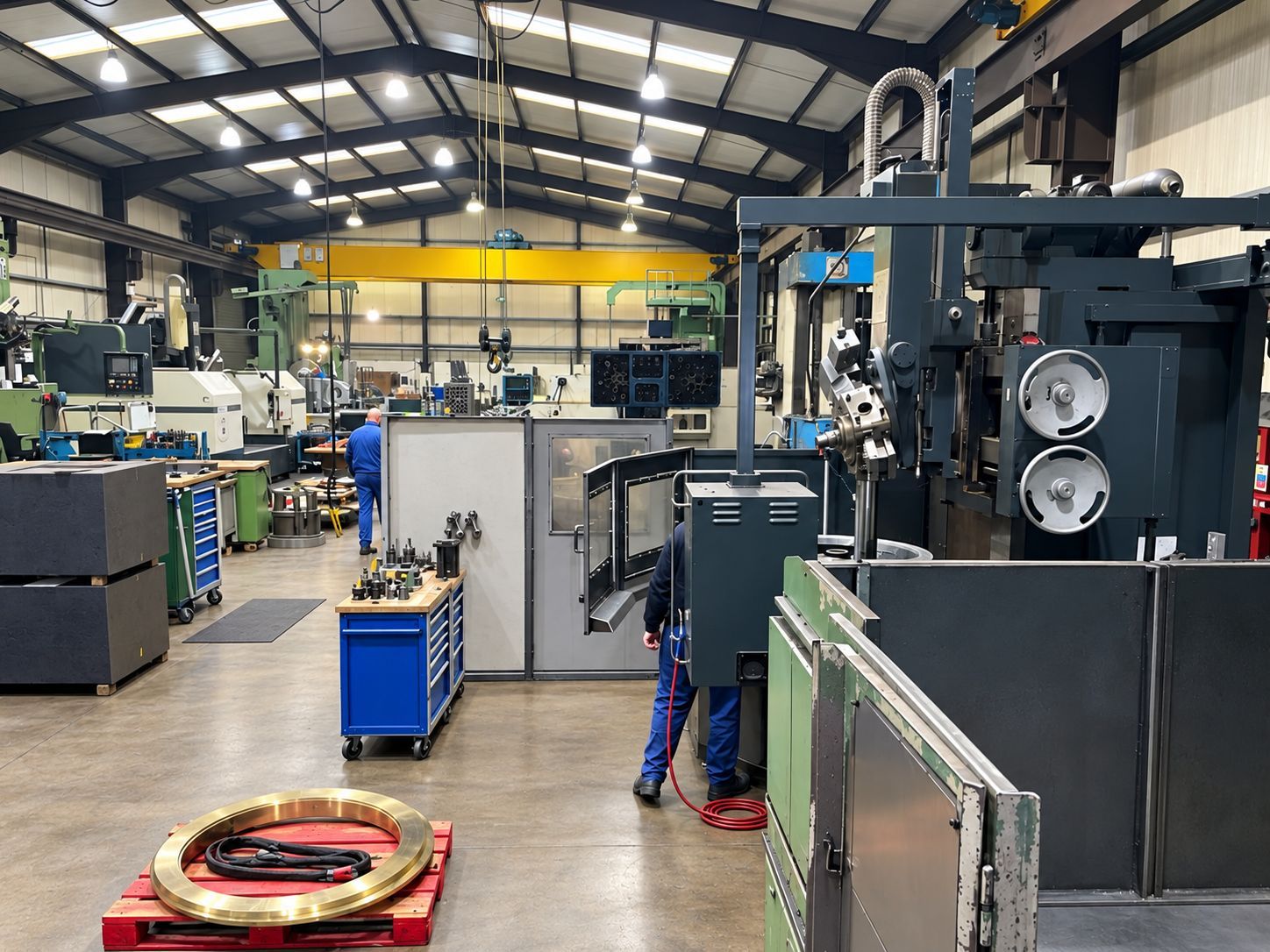

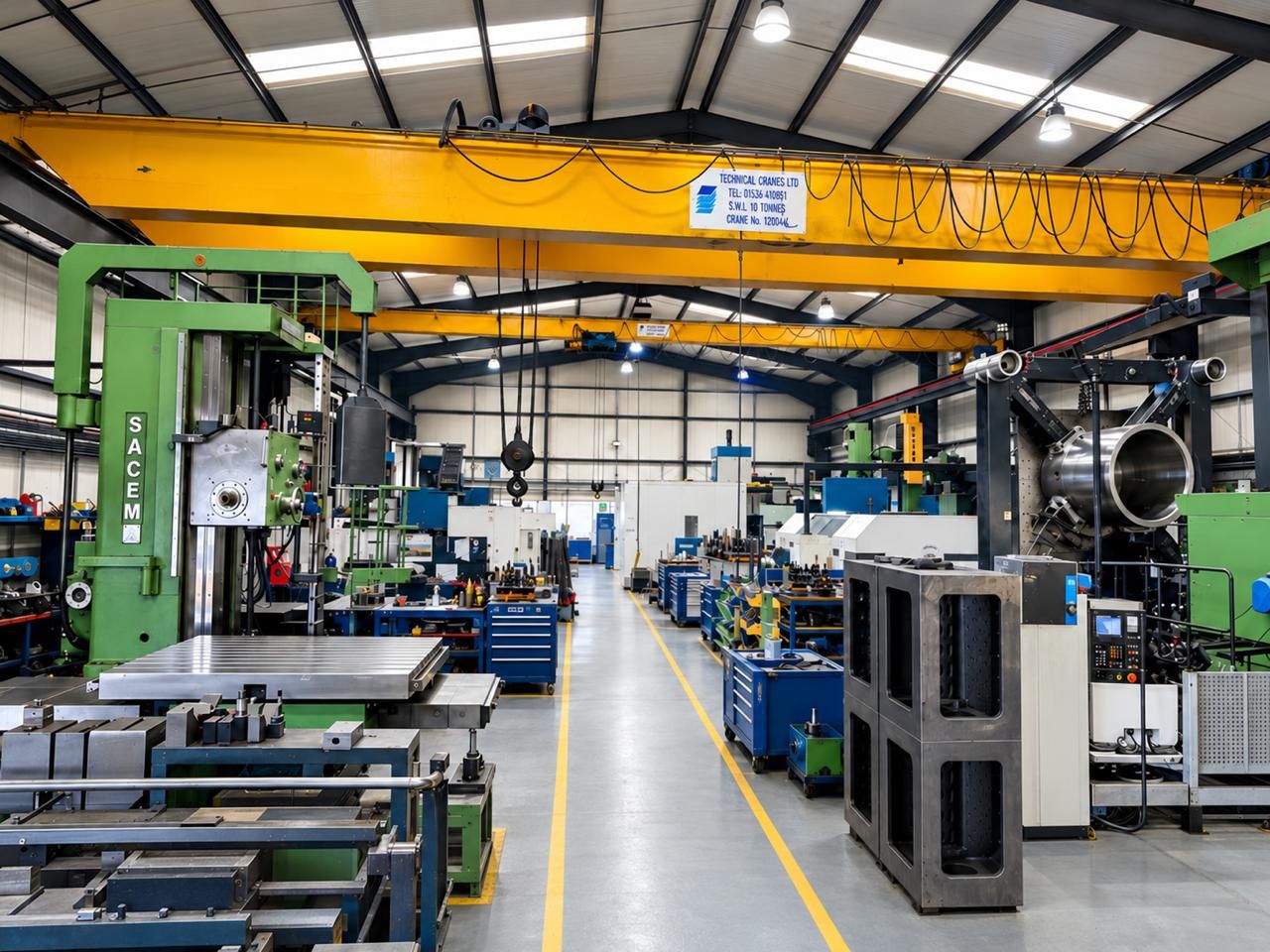

Parts up to 10 tonnes are lifted, turned over and set on our machines by a 10 tonne and a 5 tonne overhead crane covering the shop floor. Heavy castings, fabrications and assemblies are handled in-house from arrival to dispatch.

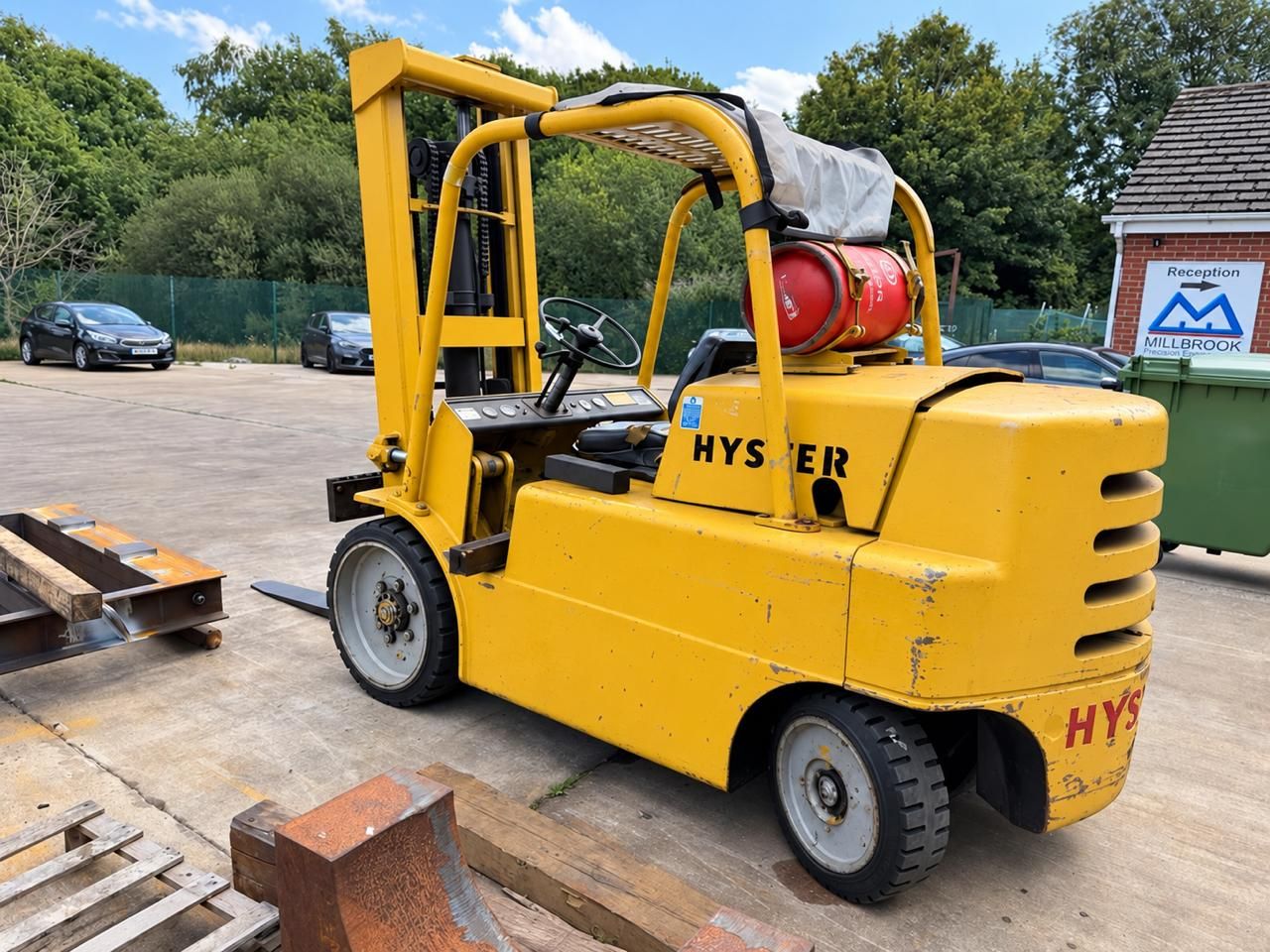

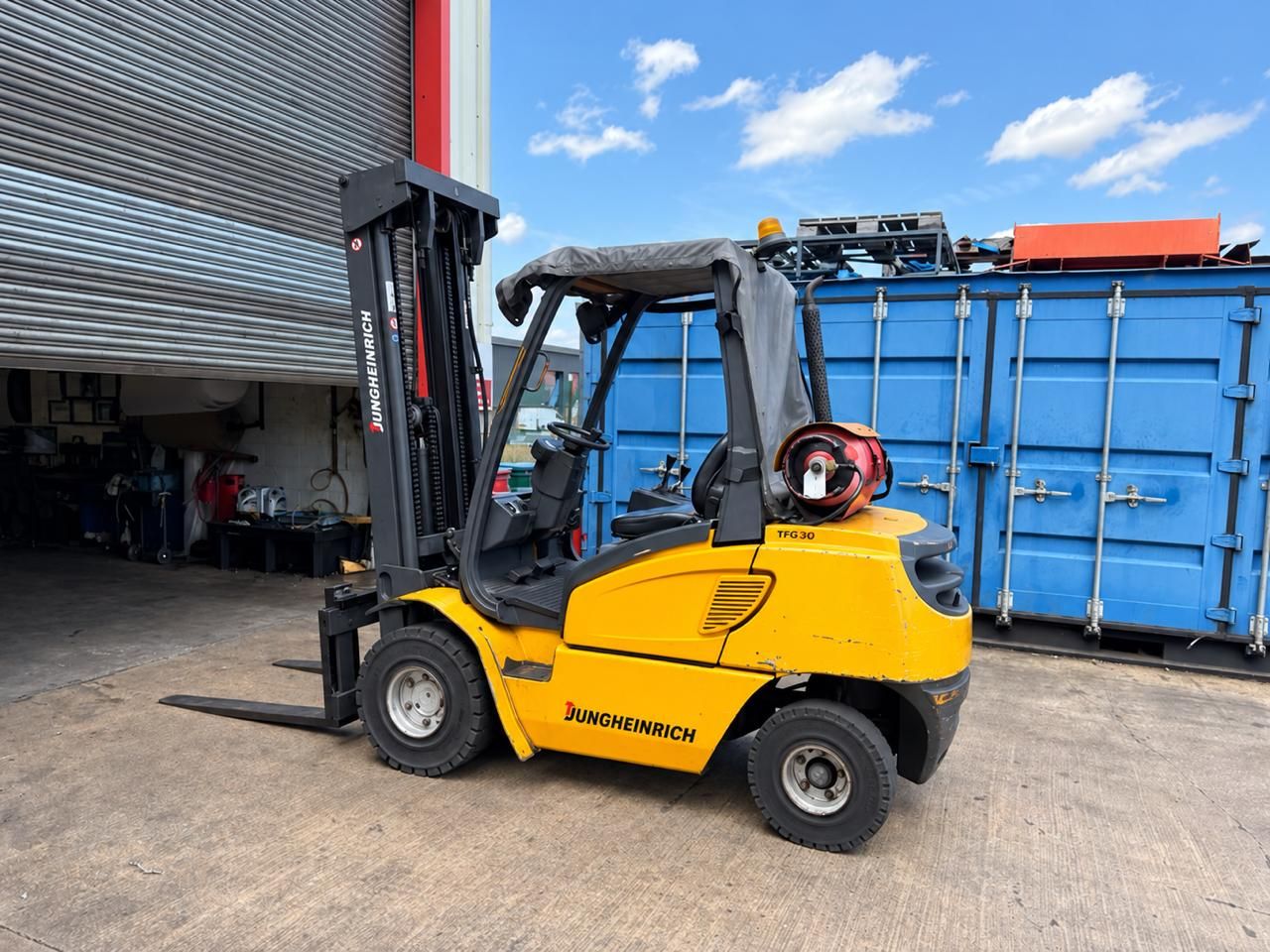

Outside, two LPG forklift trucks unload deliveries and load finished work for collection, so incoming material moves straight from the lorry into the shop.
Lifting
- Overhead cranes
- 10 t and 5 t
- Max part weight
- 10 tonnes
- Forklifts
- Two LPG forklift trucks
- Deliveries
- Mon to Thu, up to 30 minutes before closing
Quality, safety and environment
Certified, confidential, responsible
ISO 9001:2015
BSI certified since 2011, FS 569306. Every part inspected against the drawing before release.
Quality →Confidentiality
Customer security and confidentiality requirements met, NDAs on request, and Cyber Essentials-certified IT.
Confidentiality →Health, safety, environment
Risk-assessed jobs, planned heavy lifts, recycled swarf and managed fluids, every day.
Safety and environment →People
An apprenticeship programme and local employment in Clay Cross and North East Derbyshire.
ESG →Recent work
From the shop floor
What is the largest part you can machine?
Parts up to 10 tonnes and up to 3 metres diameter or cubed. Horizontal boring travels reach X 3,000 mm, and vertical turning handles up to 2,134 mm diameter by 1,120 mm high.
Do you take one-offs as well as batches?
Yes. We machine prototypes, one-offs and batch work to your drawings and specifications.
What do you machine?
Medium to large castings, fabrications, forgings, components and assemblies in steel, cast iron, aluminium, brass, copper and other metals.
Are you ISO 9001 certified?
Yes. We have held BSI certification since 2011 and operate to ISO 9001:2015, certificate number FS 569306.
Where are you, and when are you open?
Derby Road, Clay Cross, Chesterfield, Derbyshire, S45 9AG. Monday to Thursday, 07:30 to 16:00. Deliveries are accepted up to 30 minutes before closing.
Quote
Send us your drawing
Tell us the material, quantity and when you need it. We reply with a price or a straight answer on whether the part fits our machines.
Telephone01246 862610
Emailinfo@mill.uk.com
HoursMonday to Thursday, 07:30 to 16:00
Deliveries up to 30 minutes before closing
Deliveries up to 30 minutes before closing
- Free, no-obligation quotes
- NDAs signed on request
- ISO 9001:2015 · Cyber Essentials
